ULTIMATE tank guards are uncompromisingly engineered for protection in adventure riding

Seasoned world-touring adventure riders know the score: there are days when your bike drops more than once, simply due to the kind of terrain you’ll never see in civilised Europe with its expansive road network. Or because the sheer physical strain, extreme heat or cold leaves you too fatigued to keep the bike upright. Out there, away from civilisation, it’s all the more vital to rely on gear that can take a beating and endure – because staying mobile, independent and on the move can literally be life-saving by reducing risk to an absolute minimum.

Definitely made for adventure riding. Made in Germany.

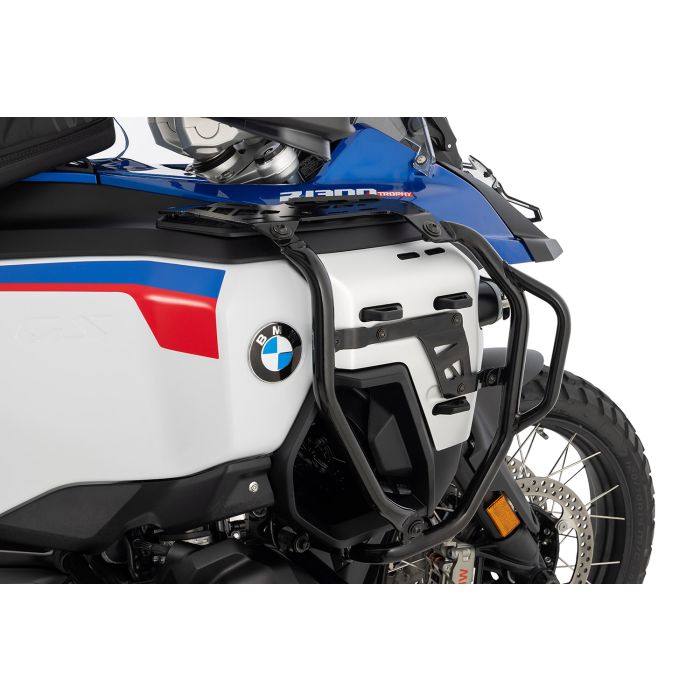

This Wunderlich ULTIMATE tank guard is specially designed for adventure riding and reliably protects the tank, fairing, front end, and the highly vulnerable water cooling units. In combination with the Wunderlich rollover guard, it forms a sophisticated all-round protection concept for enhanced passive safety: in the event of a fall or tip-over, the acting forces are optimally distributed across reinforced mounting points via the guard structure, thus minimising peak loads. Visually, the guard integrates seamlessly with the design of the Adventure and accentuates its distinctive character. The tank guard is constructed from a composite of 25 mm precision steel tubing. The segments are formed on CNC tube bending machines and then cleanly welded.

The ULTIMATE extension bars fit perfectly and work in tandem with the tank guard to enhance passive safety.
Our extension bars, made of 25 mm precision steel tubing, support, reinforce, and perfect the protective effect of the ULTIMATE tank guard.

Function and product features

• Wunderlich ULTIMATE tank guards are uncompromisingly designed for protective performance in adventure riding
• They offer maximum protection for the exposed water coolers, the tank side panels, the front end with auxiliary lights, and to a certain extent the tank side bags
• The two prominent, laterally projecting tube segments help prevent rollovers
• The cleverly integrated RackBase is a visual highlight and also serves as the upper mount for the front tank bar and the rear reinforcement strut – it also acts as a tray or compact rack with integrated lashing openings
• The design ensures that external forces and moments are evenly distributed across suitable mounting points on the right and left, minimising peak loads
• An additional bracket is integrated into the tank side panel
• The stiff tubular structure and use of selected materials ensure the maximum protective effect of the ULTIMATE tank guard
• The all-round protection concept contributes to enhanced passive safety
• Compatible with:Original engine guards
• Wunderlich ULTIMATE and ULTIMATE PRO engine guards
• Original cylinder head protectors
• Perfect, integrated, model-specific design – the bar routing follows the contours of the front precisely
• Perfect fit
• Simple Plug & Play installation: straightforward mounting on existing attachment points, includes detailed installation instructions
• The Wunderlich ULTIMATE extension bars complement the ULTIMATE tank guard and provide neatly integrated extra protection for the flanks of the BMW R 1300 GS Adventure

Material

• Protection barsPrecision steel tubing with high tensile strength and elongation at break, handcrafted, CNC-bent with precise radii, cleanly welded. Finely finished and black powder-coated
• RackBase
• Made from aluminium, finely finished Black powder-coated
• Side brackets
• Made from aluminium, finely finished Black powder-coated
• Dimensions Tubing diameter: 25 millimetres
• Finish Guard structure, RackBase and side brackets in black powder-coated finish – mono colour
